Technical Specifications

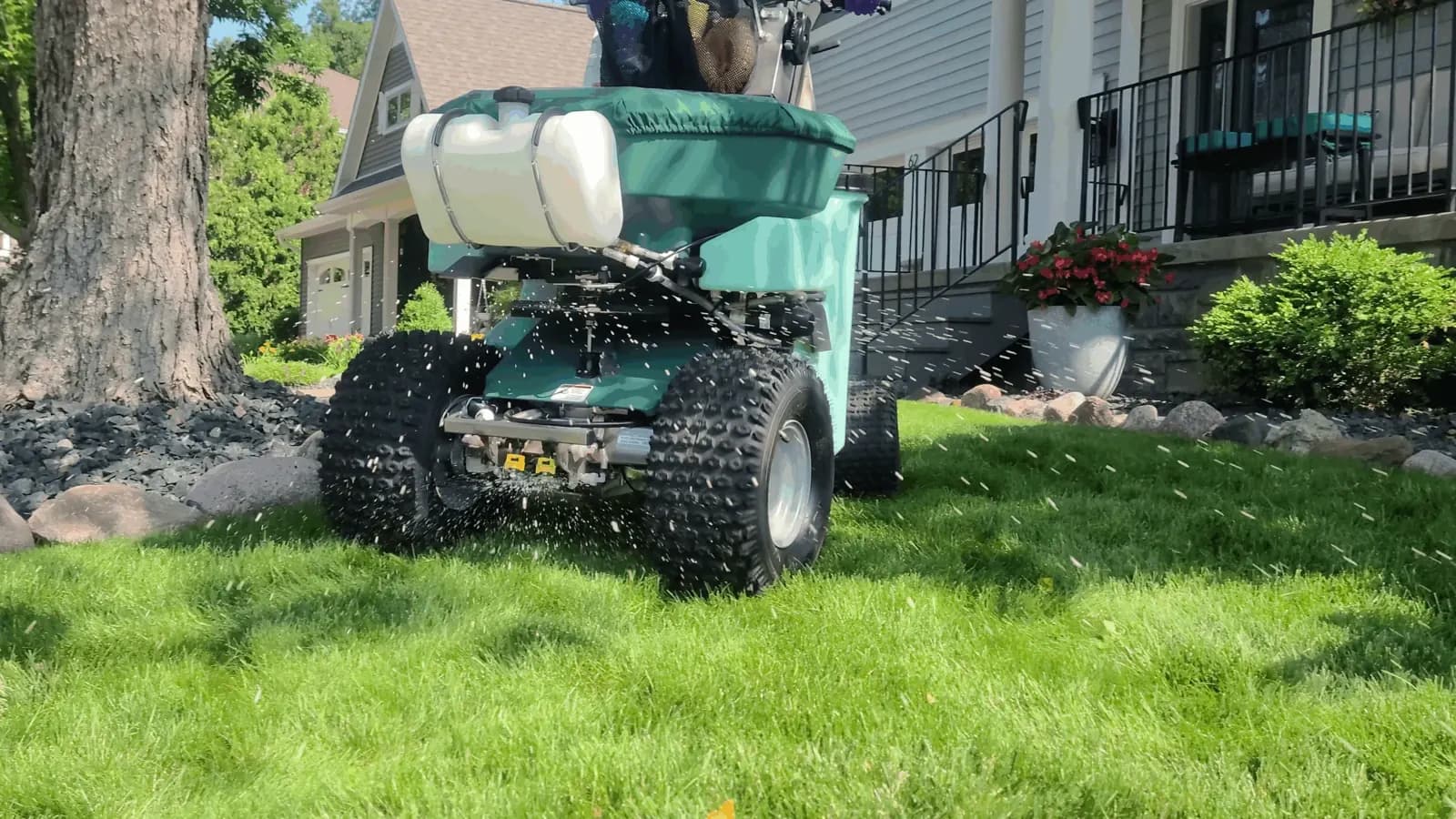

PermaGreen Triumph
Manual Start
$12,282
$13,647
or $294/mo. with financing
Electric Start
$13,038
$14,487
or $312/mo. with financing
Many buyers qualify for discounts based on:
- 1Franchise/Enterprise membership
- 2Fleet size
Engine
Engine Options
Honda GX200 200cc
Available with Manual (Pull-Start) or Electric Start
Engine Speed
3,450 RPM
Locks-in operating speed for proper calibration
Fuel Tank
0.82 gallon (3.1 liters)
Approximately 4 hours of operation per fill
Clutch
Wet clutch with 2:1 reduction
Like a automatic transmission
Drive System
Transmission
Peerless 855 two-speed with reverse
Rugged reliability
Operating Speeds
Low Gear: 3.5 mph / High Gear: 5.0 mph / Reverse
Holds calibration settings
Smart Steer System
Patented Brake-assisted steering
Easier to steer
Drop Handle System
Handlebars lower for walk-behind operation with automatic locking
Safer operation
Spreader System
Hopper Capacity
150 lbs (3 bags)
Treats up to 1 acre per fill
Spread Width
14 feet maximum broadcast width / 7 to 8 foot effective Spread widths
Spreader Type
3-hole similar to a LESCO with stainless steel slide gate
Agitation
Patented PermaGreen Agitator system
Prevents clogging and material bridging
Pattern Control
Side deflector for edge trimming / Third-hole lever with Memory-Lock pattern balancing / Dual rate adjusters (High/Low gear)
Spray System
Tank Capacity
12 gallons total (2 x 6-gallon tanks)
Treats up to 1 acre per fill
Application Rate
1 quart (32 oz) per 1,000 sq ft
Optional 1/2 gallon per 1,000 sq ft configuration
Pump
Flo-jet 2 GPM belt-driven diaphragm pump
Agitation
Return flow agitation
Venturi-jet assisted agitators keep things mixed up
Pressure Control
Unloader valve set provides constant non-adjustable flow
Prevents unwanted changes to calibration during operation
Broadcast Spray
11-foot pattern width (20 PSI) / 13-foot pattern width (30 PSI)
Trim Spray
3-foot pattern using even spray nozzles
Nozzles
High Gear Broadcast: TF-VS7.5-90 (green) / Low Gear Broadcast: TF-VS4-90 (white) / High Gear Trim: DG TeeJet 9504 EVS (red) / Low Gear Trim: DG TeeJet 9503 EVS (blue)
Wheels & Tires
Front Tires
9.50"-18" x 8" Kenda Scorpion traction tires
Fluid-filled for added traction and stability
Rear Tires
6.50"-13" x 6" Kenda turf tires
Fluid-filled for improved ground contact
Soft Foam filled tire option
Custom filled to our demanding specification
Never-flat performance for uninterrupted operation
Tire Pressure
12 PSI
Brakes
Independent front and rear brake systems / Smart Steer brake-assisted steering / Parking brake with lock mechanism
Size & Weight
Gate Access
Fits through 36" gates
Access residential backyards with ease
Spread and Spray Pattern
7+-1 foot overlap for double-coverage patterns
Highly productive on properties of 1,000 sq. ft. to 16 acres or more
Frame
All stainless steel construction
Operator Position
Ergonomic standing platform with foam anti-slip footpads
Professional Applications
Ideal Property Range
1,000 sq ft residential to 16+ acre commercial
98.5% of typical lawn care properties
Coverage Rate
Up to 1 acre in 15 minutes or less
3,000 to 3,500 square feet per minute
Supported Applications
Fertilizer distribution / Weed control treatments / Insect control / Disease prevention / Seed and fine mulch / Rock salt and de-icer / Combination treatments
Factory Options
Spot Spray Gun
Connected to main tank system
$647$582
2-Gallon Auxiliary Tank
Independent spray system for second product
$1,297$1,167
Auto-Fill System
2-minute no-spill refill system
$797$717
Foam-Filled Tires
Never-flat front and rear tires
$197$177
Carry Rack
2" or 2.5" hitch mount for truck transport
$1,597$1,437
GPS Tracking
OptiX fleet management integration
Coming Soon
Warranty & Support
Limited Warranty
12 months
Frame Warranty
24 months against corrosion
Engine Warranty
36-months
By Engine Manufacturer
Buy-Back Guarantee
60-day satisfaction guarantee
Parts Support
Same-day shipping on orders by 2 PM CST
Visit shop.permagreen.com for parts and accessories
Documentation
Specs. Options. Yours.
Ready to configure?
Choose your engine and starting system and add factory-installed options. Free shipping. Flexible financing.
Free Shipping
60-Day Buy-Back
12-Month Warranty
Same-Day Parts
